Description

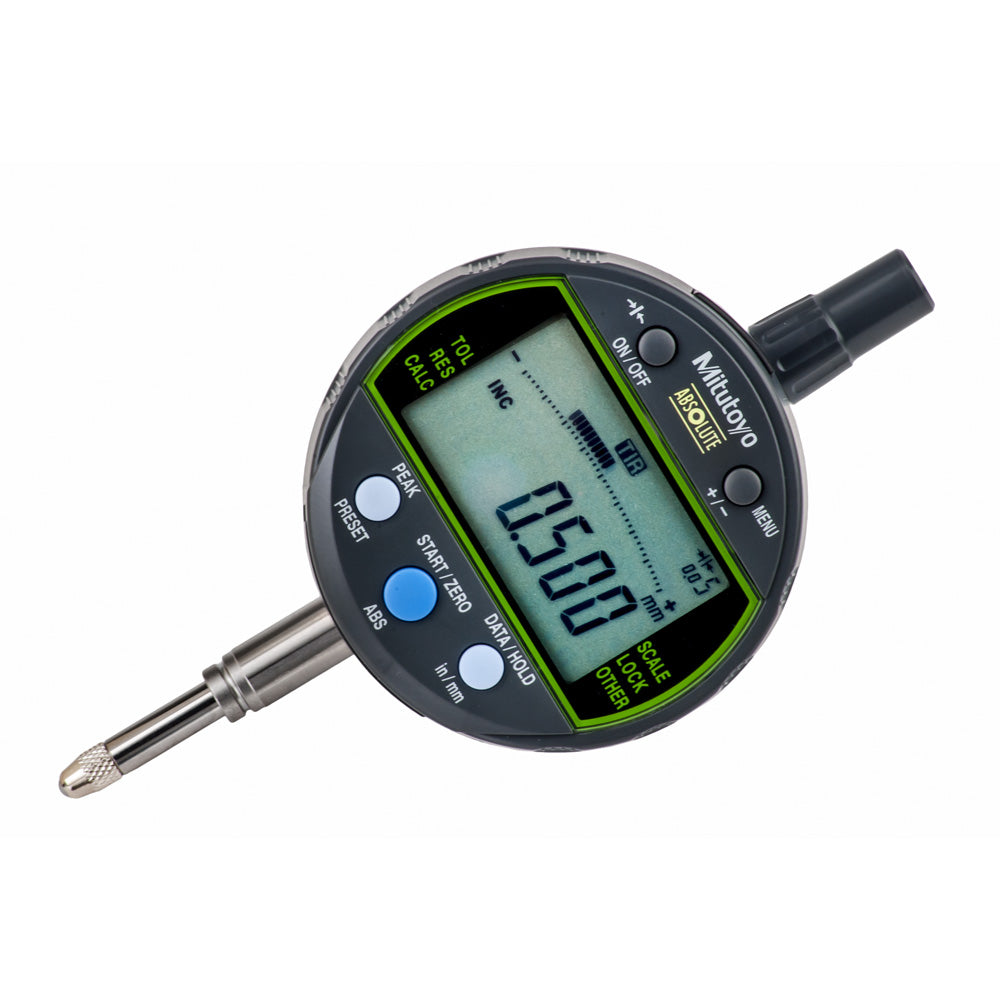

he maximum, minimum, or runout value can be displayed during measurement GO/+/-NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values. High speed sampling ration of 50 times/s Employing the absolute linear encoder, the Signal ID-C always displays the spindle "Absolute Position" from the origin at power-on
Range: 0-.500"/12.7mm Resolution: .00005"/.001mm Accuracy: .00012" Stem/Shank: 8mm Contact Point: M2.5 x 0.45 Thread Type: ISO/JIS Measuring Force: 1.5N or less Display: LCD Length Standard: ABSOLUTE electrostatic capacitance type linear encoder Max. Response Speed: Unlimited Dust/Water Protection Level: IP42
