Description

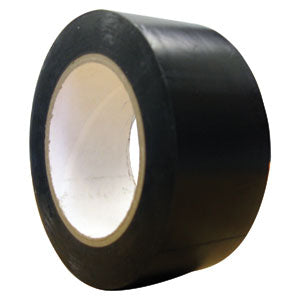

FSP0050B - UCC 200 Micron PVC OverWrap Tape
50mm X 30M (Black)
UCC PVC Overwrap Tape is composed of high qualityplasticised PVC film laminated with fungal resistantpressure sensitive natural rubber adhesive. UCC PVC OverwrapTape is designed to be applied over UCC Petrolatum Tapes toafford additional mechanical strength and impact resistance.
Features:• Exhibits resistance to acids.• Exhibits resistance to alkalais.• Exhibits resistance to fungal attack.• Encapsulates lead painted substrates.• Nil VOC s.• Ease of application at high and low temperature extremes.• Ready for immediate service no curing time.
Application:• Prepare surface to St 2 std.• Apply UCC Petrolatum Primer to substrate at a spread rateof 5kg/m² approx.• Profile projections and voids with UCC Petrolatum Mastic.• Spirally apply tape incorporating 55% overlap to achievea double thickness with circumferential turn.• Overwrap tape with UCC PVC OverWrap spirally appliedwith 55% overlap.
Product Properties:Properties | Test Method | ValueThickness | ASTM D751 | 0.2mm AvgTensile Strength | ASTM D1000 | 3.15Kg/cm AvgElongation at Break | ASTM D1000 | 200% AvgBreakdown Voltage (2 layers) | >10kvAdhesion To Self | ASTM D1000 | 0.12kg/cmAdhesion To Steel | ASTM D1000 | 0.12kg/cm
Application Temperature: -10 to +55ºCService Temperature: -20 to +70ºCExcursion Peak Temperature: 80ºC
50mm X 30M (Black)
UCC PVC Overwrap Tape is composed of high qualityplasticised PVC film laminated with fungal resistantpressure sensitive natural rubber adhesive. UCC PVC OverwrapTape is designed to be applied over UCC Petrolatum Tapes toafford additional mechanical strength and impact resistance.
Features:• Exhibits resistance to acids.• Exhibits resistance to alkalais.• Exhibits resistance to fungal attack.• Encapsulates lead painted substrates.• Nil VOC s.• Ease of application at high and low temperature extremes.• Ready for immediate service no curing time.
Application:• Prepare surface to St 2 std.• Apply UCC Petrolatum Primer to substrate at a spread rateof 5kg/m² approx.• Profile projections and voids with UCC Petrolatum Mastic.• Spirally apply tape incorporating 55% overlap to achievea double thickness with circumferential turn.• Overwrap tape with UCC PVC OverWrap spirally appliedwith 55% overlap.
Product Properties:Properties | Test Method | ValueThickness | ASTM D751 | 0.2mm AvgTensile Strength | ASTM D1000 | 3.15Kg/cm AvgElongation at Break | ASTM D1000 | 200% AvgBreakdown Voltage (2 layers) | >10kvAdhesion To Self | ASTM D1000 | 0.12kg/cmAdhesion To Steel | ASTM D1000 | 0.12kg/cm
Application Temperature: -10 to +55ºCService Temperature: -20 to +70ºCExcursion Peak Temperature: 80ºC
